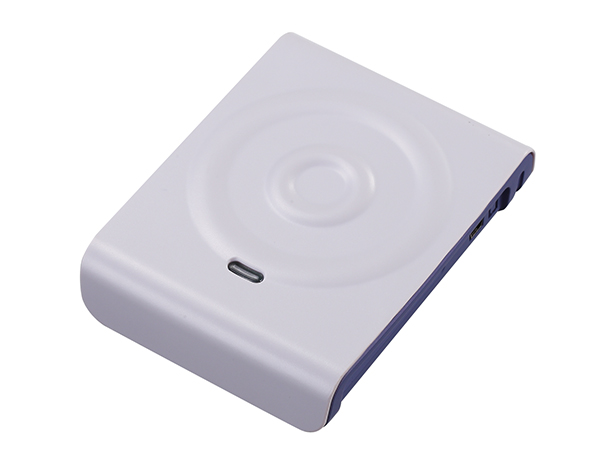

T3-U is the smartcard reader only can be used for 13.56 MHZ Mifare series card.T3-U is ideal for use in parking-meter, health care—medical identification, transportation terminals, access control, loyalty systems, electronic payment, vending machine and as well as other advanced contactless smart card applications.
With the SDK (manual, demo programs, and sample cards), you can easily develop the application without program the low level languages or deal with other complicate hardware.
| Model | T3 |
| Support IC |
Mifare1 S50 /Mifare1 S70 /Mifare1 ultralight |
| Card Standards | ISO14443 A |
| Supply Power | 5V/70mA; by keyboard output |
| Interface | USB |
| Indicator | one LED lights, indicates power and communication status |
| Operation system | Windows 98、Me、2K、XP、2003,Unix and Linux |
| Dimension (L x W x H) | 123mm x 95mm x 27mm |
| Weight | 300g |
| Operation Temperature | -20°C to +60 °C |
| Storage Temperature | -25°C to C°+80 |
| Optional features |
- support current interface function store, able to support multi operation system and language development platform. - support online update function - support ISO14443 Type A contactless smart card - support Max. 2 SAM slots |
