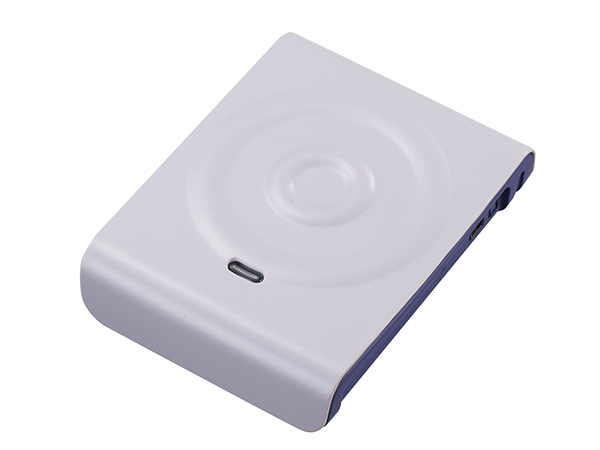

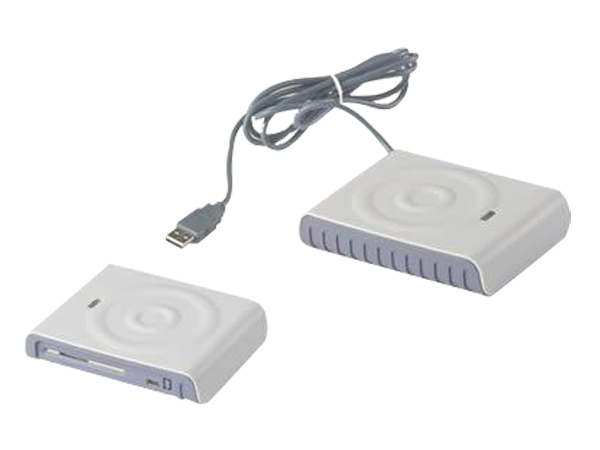

Contacless IC Card reader&writer

T8-U

Features

T8 is a 13.56 MHZ, ISO14443A/B contactless smart card reader with a competitive price; it can be read and written full Mifare® family (Ultralight, 1K S50, 4K S70 and Desfire). Also, T8 can be expended to Dual interface smart card reader; contact and contactless by request, will able to accept ISO 7816 T=0 T=1 protocols, support popular memory cards in the market. D8 is available for 2 – 3 SAM cards. Through RS232 or USB, it can easily integrate with PC and other related hardware. The application of USB no drive technique is convenient to install and use.

T8 is ideal for use in parking-meter, health care—medical identification, transportation terminals, access control, loyalty systems, electronic payment, vending machine and as well as other advanced contactless smart card applications.

With the SDK (manual, demo programs, and sample cards), you can easily develop the application without program the low level languages or deal with other complicate hardware.

Module form also availed. Size, logo, and casing can be customized.

Description

Model T8
Support IC
Mifare1 S50 /Mifare1 S70 /MF1ICL10 /Mifare1 Pro /Mifare1 Desfire /Mifare1 ultralight /SLE44R31/SLE6-6cl series/ AT88RF020
Card Standards ISO14443 A/B,ISO15693
Supply Power 5V/70mA; by keyboard output

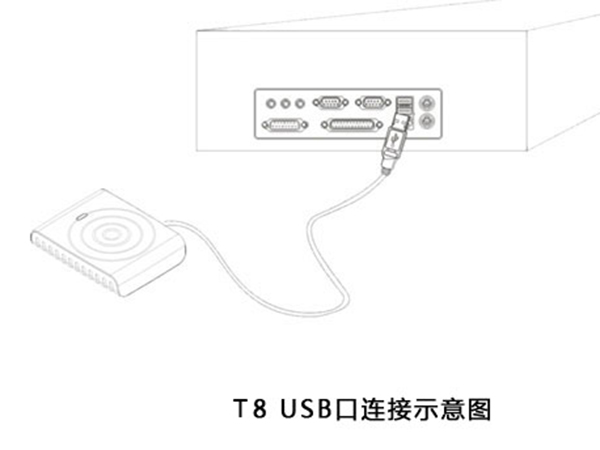

Interface USB
Indicator one LED lights, indicates power and communication status
Operation system Windows 98、Me、2K、XP、2003,Unix and Linux
Dimension (L x W x H) 125mm x 95mm x 27mm
Weight 300g
Operation Temperature -20°C to +60 °C
Storage Temperature -25°C to C°+80
Optional features - support current interface function store, able to support multi operation system and language development platform.
- support online update function
- support ISO14443 Type A, Type B,ISO15693 contactless smart card - support Max. 3 SAM slots
