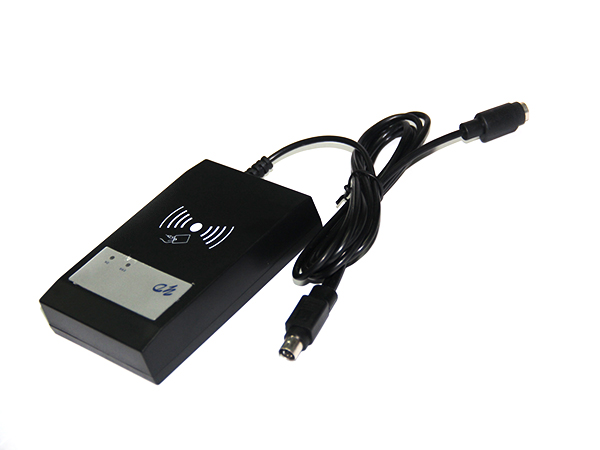

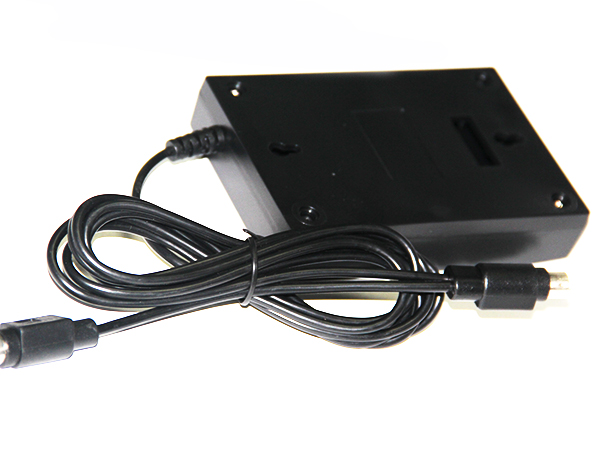

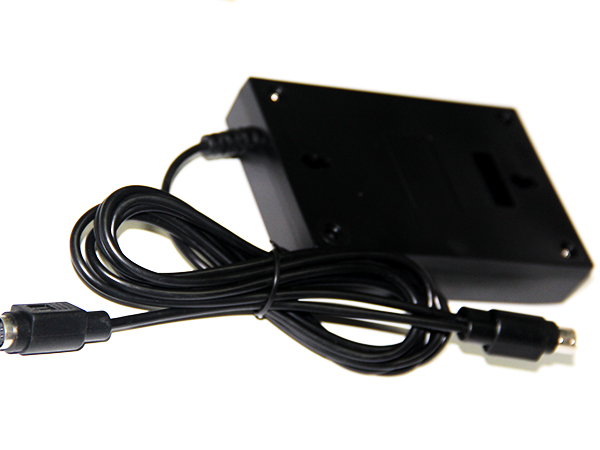

ID card reader&writer

T101-ID-JK

Feature

Power source is from computer host without external power source.

Luminescent tube indication and buzzer buzzing to identify success or failure of card reading.

Keyboard simulating output interface can be matched with IBM PC/XT/AT and compatible device. Keyboard is installed between keyboard and computer in a simulating manner. It shares the same functions as a keyboard, and keyboard operation is not affected.

Keyboard simulating output interface, with connection cable to take power directly from the keyboard port, without external power source.

Smooth with attractive appearance.

Technical Specification

ID card Standard: 125Khz EM4100 and compatible chip with 64bit, Manchester
Power Voltage: DC 5V±5%
Power supply voltage: DC 5V ± 5%
Power Current: ≤ 65mA
Working environment: Temperature: 0 ℃ ~ 45 ℃ Humidity: 10 ~ 90% RH
