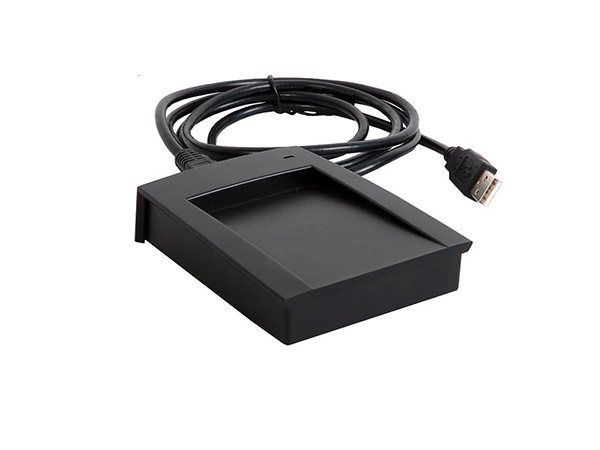

ID card reader

T100-ID

ID inductive card reader is one of contactless ID card reading series products developed by our company. It is designed for bank, tax administration, stock market, commercial inspection, postal service and other industries. It is used to read and transmit ID card information, integrating ID card and data transmission as a whole. According to different applications, it can translate the internal information in ID card into the digital information received by the host computer and supports keyboard simulating /RS-232 output/USB interface output.

Power source is from computer host without external power source. USB interface communication and RS232 output.

Luminescent tube indication and buzzer buzzing to identify success or failure of card reading.

Keyboard simulating output interface can be matched with IBM PC/XT/AT and compatible device.

USB interface communication, with connection cable to take power directly from the keyboard port, without external power source.

Smooth with attractive appearance.

ID card Standard:	Read and write EM4100 and compatible chip and ATA5577
Operating Distance:	≥ 5CM
Power Voltage:	DC 5V ± 5%
Power Current:	≤ 65mA
Working environment: Temperature:	0 ℃ ~ 45 ℃ Humidity: 10 ~ 90% RH
Frequency:	125Khz－134.2Khz
